high speed barbed wire machine

Motor 2.2kw High Speed Barbed Wire Machine For Producing Single Stranded Barbed Wire

  • Motor 2.2kw High Speed Barbed Wire Machine For Producing Single Stranded Barbed Wire
Product Details:

CS-B Single Twisted Barbed Wire Netting Machine / Motor 2.2kw





Describe



Barbed Wire Machine (CS-B) Type


Used for producing single-stranded barbed wire. The machine is mainly featured by material economization, easy operation and low noise. It is safe and reliable in operation ,capable of turning out high quality products with consistency.



Item
Motor 2.2kw
Theoretical Yield 50kg/h
Total Weigh 1200kg
Overall Dimensions 1900mmx1300mmx980mm
Size of Wire Collecting Part 1300mmx800mmx700mm
Barbed Distance As required
Number of Twists 4,6
Strand Wire Diameter 1.6-2.6mm
Barbed Wire Diameter 1.6-2.2mm
Main Driving Axle Speed 357r/min

High Speed Barbed Wire Machine / Single Twisted Machine 3kw Motor

  • High Speed Barbed Wire Machine / Single Twisted Machine 3kw Motor
Product Details:

Barbed Wire Machine / CS-A Single Twisted Machine / 3kw Motor



Specifications


Barbed Wire Machine
designed to produce screens with single
double-stranded barbed steel wire,
thermo-plated with zinc

Barbed Wire Machine Barbed Wire Machine is designed to produce screens with single or double-stranded barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together at the middle.

Item
Motor 2.2kw
Rated output 50kg/h
Weight 1200kg
Overall Dimension 1900mmx1300mmx980mm
Wire collection part size 1300mmx800mmx700mm
Barb pitch spacing As required
Twist 4
Strand Diameter 1.6-2.6mm
Wire Diameter 1.6-2.2mm
Rotating Speed of Drive shaft

432 r/min



Double / Single Twisted High Speed Barbed Wire Machine Multi Function Low Noise

  • Double / Single Twisted High Speed Barbed Wire Machine Multi Function Low Noise
  • Double / Single Twisted High Speed Barbed Wire Machine Multi Function Low Noise
Product Details:

Barbed Wire Machine / CS-A double twisted / CS-B single twisted Machine





Barbed wire machine is designed to produce screens with sing or double-stranded barbed steel wire,

thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together

at the middle.It is safe and reliable in operation,capable of turning out high quality products with consistency.



Parameter of barbed wire machine



Model CS-A CS-B CS-C
Motor 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355r/min
Wire diameter 2.2-3.0 mm 2.2-3.0 mm 1.6-2.2 mm
Barbed wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed Space 76,102,127 102,127 102,127
Twisted number 3-5   7
theoretical production 77kg/h 40kg/h 40kg/h
weight 1000kg 950kg 950kg
Main part size 1950x950x1300mm 3100x1000x1150mm 3100x1000x1150mm



High Speed Barbed Wire Machine Production Line 1.8 - 2.2mm Barbed Wire Diameter

  • High Speed Barbed Wire Machine Production Line 1.8 - 2.2mm Barbed Wire Diameter
Product Details:

Single Strand Brebed Wire Machine / Single Twist Barbed Wire Making Machine





Barbed Wire Making Machine Types



Single Strand Barbed Wire

Double Strand Double Twisted Barbed Wire

Double Strand Common Twisted Barbed Wire



Barbed Wire Making Machine Materials



1. Electric galvanized wire

2. Hot dipped galvanized wire

3. PVC Coated wire

4. Stainless steel wir

Parameter of barbed wire machine



Model CS-A CS-B CS-C
Motor 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355r/min
Wire diameter 2.2-3.0 mm 2.2-3.0 mm 1.6-2.2 mm
Barbed wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed Space 76,102,127 102,127 102,127
Twisted number 3-5   7
theoretical production 77kg/h 40kg/h 40kg/h
weight 1000kg 950kg 950kg
Main part size 1950x950x1300mm 3100x1000x1150mm 3100x1000x1150mm

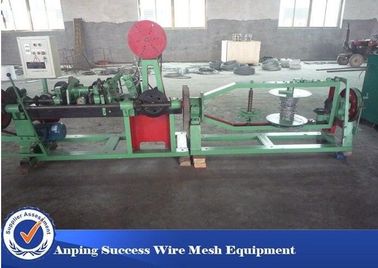

High Speed Barbed Wire Machine , Wire Mesh Equipment For Military Field / Prisons

  • High Speed Barbed Wire Machine , Wire Mesh Equipment For Military Field / Prisons
Product Details:

Single Barbed Wire Making Machine / CS-B single twisted Machine





Describe



1. Barbed wire machine is designed to produce screens with sing or double-stranded barbed steel wire,

thermo-plated with zinc.

2. The machine is compose of spool wire and twist wire two parts. And the machine is fitted with four disks for wire rewinding. The machine is coordination of various components ,gentle movement.



Application



Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.

Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.



Parameter of barbed wire machine



Model CS-A CS-B CS-C
Motor 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355r/min
Wire diameter 2.2-3.0 mm 2.2-3.0 mm 1.6-2.2 mm
Barbed wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed Space 76,102,127 102,127 102,127
Twisted number 3-5   7
theoretical production 77kg/h 40kg/h 40kg/h
weight 1000kg 950kg 950kg
Main part size 1950x950x1300mm 3100x1000x1150mm 3100x1000x1150mm



High Speed Barbed Wire Machine Easy Operation 1900mm*1300mm*980mm

  • High Speed Barbed Wire Machine Easy Operation 1900mm*1300mm*980mm
Product Details:

Barbed Wire Machine / CS-B Single Twisted Barbed Wire Netting Machine


Sub-thread Common Barbed Wire Machine (CS-B) Type

Used for producing single-stranded barbed wire. The machine is mainly featured by material economization, easy operation and low noise.



Barbed Wire Making Machine Types



Single Strand Barbed Wire

Double Strand Double Twisted Barbed Wire

Double Strand Common Twisted Barbed Wire

Item
Motor 2.2kw
Theoretical Yield 50kg/h
Total Weigh 1200kg
Overall Dimensions 1900mmx1300mmx980mm
Size of Wire Collecting Part 1300mmx800mmx700mm
Barbed Distance As required
Number of Twists 4,6
Strand Wire Diameter 1.6-2.6mm
Barbed Wire Diameter 1.6-2.2mm
Main Driving Axle Speed 357r/min

High Speed Barbed Wire Machine , Wire Netting Machine 1500kg

  • High Speed Barbed Wire Machine , Wire Netting Machine 1500kg
Product Details:

Barbed Wire Machine / CS-A Single Twisted Barbed Wire Netting Machine





Specifications



1. Barbed Wire Machine designed to produce screens with single double-stranded barbed steel wire, thermo-plated with zinc.
2. Barbed Wire Machine Barbed Wire Machine is designed to produce screens with single or double-stranded barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together at the middle.It is safe and reliable in operation,capable

of turning out high quality products with consistency.





Item
Motor 2.2kw
Rated output 50kg/h
Weight 1200kg
Overall Dimension 1900mmx1300mmx980mm
Wire collection part size 1300mmx800mmx700mm
Barb pitch spacing As required
Twist 4
Strand Diameter 1.6-2.6mm
Wire Diameter 1.6-2.2mm
Rotating Speed of Drive shaft 432r/min
