wire mesh welding machine

Professional Wire Mesh Welding Machine For Floor Roof Wire Netting 380v

  • Professional Wire Mesh Welding Machine For Floor Roof Wire Netting 380v
Product Details:

Fence Mesh Welding Machine / Full Automatic / Wire Mesh Welding Machine



The automatic wire mesh welding machine is mainly used to weld fence and floor roof wire netting.


Operation processes: warps and wefts required by the equipment are pre-sheared by an automatic straightening cutting machine, the warps are placed on a corresponding warp groove, and the wefts are placed into a corresponding weft groove, and a fall feeder is controlled for automatic blanking and welding through a stepper motor respectively; the stepper motor controls a mesh drawing process to ensure accurate and uniform grids.

Both grid size and welding parameters are set by direct input on an operation panel, which is simple and accurate in operation..

Technical parameters:



Wire diameter 3-6mm Rated voltage 380V
Welding aperture 50*50-300*300mm Rated power 750kva
Welding width 2500mm Dimensions 6x3.2x1.8m
Warp quantity 48 Machine weight 4.2t
Welding speed 60 times/min welding mesh length 6-12m



Automatic Wire Mesh Welding Machine High Speed 50X50-200X200MM

  • Automatic Wire Mesh Welding Machine High Speed 50X50-200X200MM
Product Details:

Automatic Welded Mesh Machine / Wire Mesh Machine / Automatic Straight Weft





Specifications



Automatic Welded Mesh Machine JG
1. width:1200mm-3000mm
2. wire diameter:1.4mm-2.5mm
3. mesh:50*50-200*200mm

Automatic Welded Mesh Machine JG



Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1.4-2.5mm

Welding wire diameter 1.4-2.5mm Rated voltage 380V, 420V (customizable)
Welding aperture 50X50-200X200MM Rated power Customized
Welding width 1200mm Dimensions 1.8x2.5x1.8m
Warp quantity 25 Machine weight 3.2t
Welding speed 80times/min

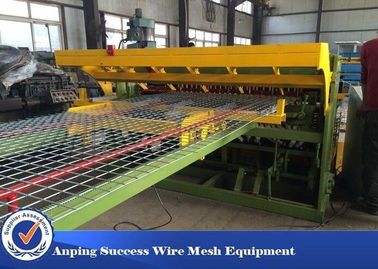

Construction Steel Wire Mesh Welding Machine Automatic 50X50-200X200MM

  • Construction Steel Wire Mesh Welding Machine Automatic 50X50-200X200MM
Product Details:

Construction Steel Wire Mesh Welding Machine / Welding Width 1200mm / 80times/min





Feeding mode: coil feeding

The precision weft cutting device and the axial positioning device are provided for wefts to ensure that the wefts are not required to be trimmed due to consistent length and tidy edges.

Welding: full-automatic welding

A power electronic synchronous control technology is adopted, both welding time and branch control welding are formed by a digital integrated circuit, the control accuracy is high, welding sports are firm, and burn marks cannot be formed..

Finished products: flaky meshes, coiled meshes (optional)

Meshes are drawn by an elastic pull rod and a grid positioning device, so that grids are easy to adjust slightly and high in dimensional accuracy, and the apertures of welded meshes can be adjusted at random in a certain range.

Application:


Construction meshes, Shiloh plate meshes, geothermal meshes, seedbed meshes, flower room meshes

Welding wire diameter 1.4-2.5mm Rated voltage 380V, 420V (customizable)
Welding aperture 50X50-200X200MM Rated power Customized
Welding width 1200mm Dimensions 1.8x2.5x1.8m
Warp quantity 25 Machine weight 3.2t
Welding speed 80times/min



The above parameters can be customized according to customer requirements.

Reinforcing Bar Wire Fence Machine / Wire Mesh Welding Machine Customized Color

  • Reinforcing Bar Wire Fence Machine / Wire Mesh Welding Machine Customized Color
Product Details:

Reinforcing Wire Welding Machine / Steel Mesh Welding Machine





Description



Synchronous control technology, welding time and sub-control welding managed by control system of industrial personal computer, control software based on Windows operating system, human-computer interface, more intelligent and personalized operation. Warp adopts wire coiling feed and continuous feeding, and alignment, welding, cutting and transport are automatically finished. Wire drawing controlled by servo motor, grid size more precise than stepping motor control, meshes with different size appearing in warp direction on the same net.



Application



Expressway, railway, bridge, fence (wire mesh fence, fence mesh), building (floor pouring top mesh)



Specifications



Welding Wire Diameter 5-12mm Nominal Voltage 380V
Welding Aperture Weft Distance 100-300mm, Warp Distance 100-300mm Nominal Power 1820KVA
Welding Breadth 2500mm Welding Rate 30 times/min
Warp Quantity (Welding Spot) 26 Overall Dimensions 20x3.6x2.5M


Advantage



Its greatest characteristic is breaking the situation that wire mesh fence cannot be continuously produced by wire coiling and changing the trivia of changing each contact pressure spring because of different wire diameter, and welding spot pressure can be changed by slightly changing cylinder pressure knob.

Eco Friendly Wire Mesh Welding Machine , PVC Wire Coating Machine Various Colors

  • Eco Friendly Wire Mesh Welding Machine , PVC Wire Coating Machine Various Colors
  • Eco Friendly Wire Mesh Welding Machine , PVC Wire Coating Machine Various Colors
  • Eco Friendly Wire Mesh Welding Machine , PVC Wire Coating Machine Various Colors
Product Details:

PVC Power Coating Machine / Welding Fence Coating Machine



Description



The equipment takes steel and other metal as the body and hi-tech resin composite as the coat, so it resists strong acid, strong alkali and gas corrosion. The plastic dip equipment is suitable for expressway, airport, railway and urban road isolation rail, civil protective wire and bar, sports goods, anticorrosion supplies, crafts and other workpieces.
Eco-friendliness and non-pollution, non-rustiness in over 30 years, bright and clean color, various colors, ideal updating product of metal paints.



Automatic PVC Fence Mesh Coated Production Line



This product is adopted for producing electrical insulating plaster with PVC

The materials to be used is 1,PVC film 2,solvent glue

The main process is Gravure Coating&Comma Roll Coating System

Wire diameter 0.8-3.5mm
Overview size 15x2.0x1.8m
Main power 22 kw
Max 90 kg



Main component



1. Unwinder 1 set
2. Gravure coating header 1 set oven 4m
3. Comma coating header 1 set
4. Pedrail 3 set
5. Pedrail 3 set
6. Cooling trunk 4m
7. Storage framework 1 set
8. Rewinder 1 set
9. Transferring heal system 1 set
10. Controlling system 1 set
11. Ventilation system 1 set
12. Machine Frame 1 set



Specification (mechanical figure)



1. Coating width 1300mm
2. Total power around 95 K
3. Rolling order+/-2.5mm
4. Coating distribution +/-0.003
5. Machine speed 5-30m/min line speed 0-22m/min
6. Dryzing Method Heated by steam
7. Temperature controlling Max. 120C +/-5C
8. Thickness of the glue Min.0.02(dried glue)
9. Purchaser would prepare



Heating source Heating pot



compressed air 7kgf/cm2 7.5HP compressor



Semi-automatic PVC Fence Mesh Coated Production Line



panel size <=3000mm*2000mm
production speed >=40pieces/h
totally power 570kw
total area 42000*12000*5000mm



Machine parts:
1. Preheat system
a, overall demension:11520*1060*3360(mm)
b, inside size:11400*700*3000(mm)
c, thickness of insulating course:180mm with rock wool
d, preheat room material:iron panel
e, preheat room door:automatic
2. Solidify system
3. Heating system
4. PVC coated system
5. hang transport machine
6. control system
