Gabion Wire Mesh Machine
Certification
- I'm Online Chat Now
hexagonal wire netting machine
Customized Color / Size Hexagonal Wire Netting Machine For Weaving Mesh
Product Details:
Hexagonal Wire Netting Machine / Gabion Mesh Machine / 60x80 Gabion Mesh Machine
Description
1. Gabion Mesh Machine adopts PLC automatic control and hydraulic drive,
2. Stable operation, low noise and high efficiency, and is an ideal machine for weaving large specification, broad width and thick wire diameter hexagonal wire mesh.
Application
1. Gabion Mesh machine is also called Heavy-duty hexagonal wire netting machine.
2. The gabion box is made of pieces of hexagonal wire netting,which is mainly uesd as building material
3. it can be used in resevior for closure,and also seaves as highway guard rail netting,railway guard rail netting,green guard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh,etc.
Specifications
| Product Specification(mm) | Maximum Breadth(mm) | Maximum Wire Diameter(mm) | Twist Ridge Count | Spindle Speed |
Motor Power (kw) |
| 60X80 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 80X100 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 100X120 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 |
| Theoretical Production Speed | |||
| Twist Mesh Hole Number/min | m/h | Overall Dimensions(LXWXH)mm | Quality(T) |
| 25 | 165 | 5200X1400X2400 | 14 |
| 25 | 165 | 6200X1400X2400 | 15 |
| 25 | 165 | 7200X1400X2400 | 16 |
| 25 | 195 | 5200X1400X2400 | 14 |
| 25 | 195 | 6200X1400X2400 | 15 |
| 25 | 195 | 7200X1400X2400 | 16 |
| 25 | 225 | 5200X1400X2400 | 14 |
| 25 | 255 | 6200X1400X2400 | 15 |
| 25 | 225 | 7200X1400X2400 | 16 |
| Standard Supply Scope | |
| Host | 1 |
| Wire Collecting Machine | 1 |
| Silk Guide Roller | 1 |
| Standard Random Accessory | 1 Set |

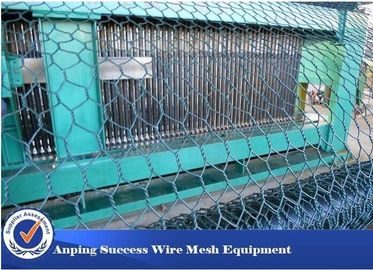

4300mm Width Hexagonal Wire Netting Machine Equipment Easy Operation
Product Details:
4300 Gabion Mesh Machine / Gabion Mesh Machine / Gabion Mesh Machine Automatic
Description
1. Heavy-duty hexagonal wire mesh weaving machine adopts PLC automatic control and hydraulic drive
2. Stable operation, low noise and high efficiency
3. It is an ideal machine for weaving large specification, broad width and thick wire diameter hexagonal wire mesh.
Application
Heavy-duty hexagonal wire netting machine is also called Gabion mesh machine.The gabion box is made of pieces of hexagonal wire netting,which is mainly uesd as building material,it can be used in resevior for closure,and also seaves as highway guard rail netting,railway guard rail netting,green guard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh,etc.
Specifications
| Product Specification(mm) | Maximum Breadth(mm) | Maximum Wire Diameter(mm) | Twist Ridge Count | Spindle Speed |
Motor Power (kw) |
| 60X80 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 80X100 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 100X120 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 |
| Standard Supply Scope | |
| Host | 1 |
| Wire Collecting Machine | 1 |
| Silk Guide Roller | 1 |
| Standard Random Accessory | 1 Set |
PVC Coated Hexagonal Wire Netting Machine With Hydraulic Drive OEM / ODM Acceptbale
Product Details:
PVC Coated Gabion Mesh Machine / Gabion Mesh Machine / Gabion Boxes Machine
Description
1. Heavy-duty hexagonal wire mesh weaving machine adopts PLC automatic control and hydraulic drive
2. Stable operation, low noise and high efficiency
Application
Heavy-duty hexagonal wire netting machine is also called Gabion mesh machine. It seaves as highway guard rail netting,railway guard rail netting,green guard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh,etc.
Specifications
| Product Specification(mm) | Maximum Breadth(mm) | Maximum Wire Diameter(mm) | Twist Ridge Count | Spindle Speed |
Motor Power (kw) |
| 60X80 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 80X100 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 100X120 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 |
| Standard Supply Scope | |
| Host | 1 |
| Wire Collecting Machine | 1 |
| Silk Guide Roller | 1 |
| Standard Random Accessory | 1 Set |
Heavy Duty Gabion Box Machine , Hexagonal Wire Netting Machine For Gabion Box / Stone Box
Product Details:
Automatic Hexagonal Machine / Gabion Mesh Machine / Galvanized Gabion Machine
Description
Heavy-duty hexagonal wire mesh weaving machine adopts PLC automatic control and hydraulic drive, It has stable operation, low noise and high efficiency
Application
It can be used in resevior for closure,and also seaves as highway guard rail netting,railway guard rail netting,green guard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh,etc.
Specifications
| Product Specification(mm) | Maximum Breadth(mm) | Maximum Wire Diameter(mm) | Twist Ridge Count | Spindle Speed |
Motor Power (kw) |
| 60X80 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 80X100 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 100X120 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 |
| Theoretical Production Speed | |||
| Twist Mesh Hole Number/min | m/h | Overall Dimensions(LXWXH)mm | Quality(T) |
| 25 | 165 | 5200X1400X2400 | 14 |
| 25 | 165 | 6200X1400X2400 | 15 |
| 25 | 165 | 7200X1400X2400 | 16 |
| 25 | 195 | 5200X1400X2400 | 14 |
| 25 | 195 | 6200X1400X2400 | 15 |
| 25 | 195 | 7200X1400X2400 | 16 |
| 25 | 225 | 5200X1400X2400 | 14 |
| 25 | 255 | 6200X1400X2400 | 15 |
| 25 | 225 | 7200X1400X2400 | 16 |
Allumen Hexagonal Wire Netting Machine Blue Color Automatic Oil System 100x120mm Mesh Size
Product Details:
Allumen Gabion Boxes Machine / Gabion Mesh Machine / Hevay-duty Hexagnoal Wire Netting Machine
Description
1. Heavy-duty hexagonal wire mesh weaving machine adopts PLC automatic control and hydraulic drive
2. It has stable operation, low noise and high efficiency, and is an ideal machine for weaving large specification, broad width and thick wire diameter hexagonal wire mesh.
Application
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
Specifications
| Product Specification(mm) | Maximum Breadth(mm) | Maximum Wire Diameter(mm) | Twist Ridge Count | Spindle Speed |
Motor Power (kw) |
| 60X80 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 80X100 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 | |
| 100X120 | 2300 | 3 | 3 | 25 | 11 |
| 3300 | 3 | 3 | 25 | 15 | |
| 4300 | 3 | 3 | 25 | 22 |
| Type: | Automatic | Color: | Blue |
|---|---|---|---|
| Delivery Time: | 40 Days | Warranty: | 1 Year |
| Mesh Size: | 100x120mm | Width: | 2300mm |
