sheet metal perforating machine

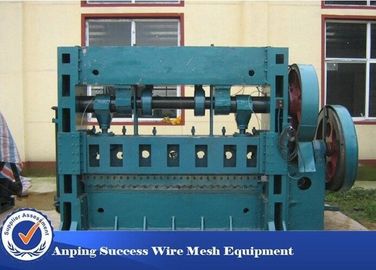

3KW Aluminum Sheet Metal Perforating Machine , Expanded Metal Lathe Machine Blue Color
Product Details:
Aluminum Flattening Expanded Metal Machine / Filter Mesh Making Machine
Description
1. The machine we design and produce including standard type, high speed type and heavy type.
2. It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet.
Feature
1. simple structure and easy installation
2. high working speed and low noise
Application
The light expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.
Steel Screen Machine
| Model Specifications | Punching Shear Material Thickness | Maximum Punching Shear Thickness | Slider Reciprocating Times | Feeding Distance | Punching Shear Mesh Length Distance | Motor Power | Total Weight | Overall Dimensions |
| JQ25-6.3 | <=1.0mm | 500mm | 180/min | 0-1.15mm | <=20mm | 2.2KW | 0.95T | 950X570X1780 |
| JQ25-16 | <=1.0mm | 1000mm | 150/min | 0-1.2mm | <=25mm | 3KW | 2T | 1800X1320X1550 |
| JQ25-25 | <=1.5mm | 1200mm | 150/min | 0-1.2mm | <=30mm | 4KW | 3T | 1940X1600X2010 |
| JQ25-63A | <=2.5mm | 2000mm | 70/min | 0-4mm | <=100mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-63 B | <=3mm | 2000mm | 45/min | 0-4mm | <=200mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-100 | <=4mm | 2000mm | 60/min | 0-4 | <=150mm | 15KW | 12T | 3600 x 2500 x 3000 |
| JQ25-160A | <=6mm | 2000mm | 20/min | 0-7mm | <=200mm | 22KW | 18T | 5500X1750X3300 |
| JQ25-160B | <=6mm | 2500mm | 20/min | 0-4mm | <=200mm | 22KW | 20T | 5500X1750X3300 |

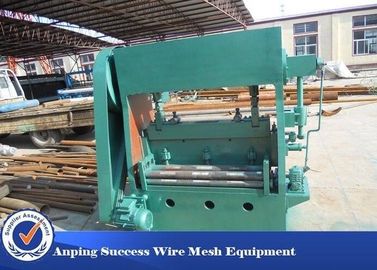

Sheet Mesh Sheet Metal Perforating Machine Equipment For Steel Sheet Electric System
Product Details:
Sheet Mesh Expanded Metal Machine / High Effiency Expanded Mesh Making Machine
Description
1. Expanded Metal Machine has attained advanced technology scientific maturity and practical usage that make Expanded Metal Mesh,Aluminium Expanded Metal Mesh ect.
2. The machine we design and produce including standard type, high speed type and heavy type.
3. It adopts automatic lubricating system,automatic feeding material by step motor ,the electric system is PLC control.it running stable, operation easy.
Application
The light expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.
Steel Screen Machine
| Model Specifications | Punching Shear Material Thickness | Maximum Punching Shear Thickness | Slider Reciprocating Times | Feeding Distance | Punching Shear Mesh Length Distance | Motor Power | Total Weight | Overall Dimensions |
| JQ25-6.3 | <=1.0mm | 500mm | 180/min | 0-1.15mm | <=20mm | 2.2KW | 0.95T | 950X570X1780 |
| JQ25-16 | <=1.0mm | 1000mm | 150/min | 0-1.2mm | <=25mm | 3KW | 2T | 1800X1320X1550 |
| JQ25-25 | <=1.5mm | 1200mm | 150/min | 0-1.2mm | <=30mm | 4KW | 3T | 1940X1600X2010 |
| JQ25-63A | <=2.5mm | 2000mm | 70/min | 0-4mm | <=100mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-63 B | <=3mm | 2000mm | 45/min | 0-4mm | <=200mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-100 | <=4mm | 2000mm | 60/min | 0-4 | <=150mm | 15KW | 12T | 3600 x 2500 x 3000 |
| JQ25-160A | <=6mm | 2000mm | 20/min | 0-7mm | <=200mm | 22KW | 18T | 5500X1750X3300 |
| JQ25-160B | <=6mm | 2500mm | 20/min | 0-4mm | <=200mm | 22KW | 20T | 5500X1750X3300 |

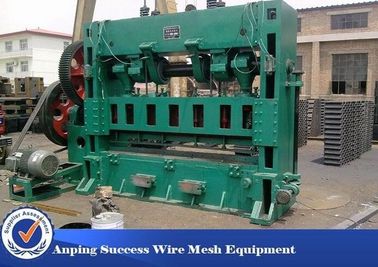

High Speed Sheet Metal Perforating Machine No Waste Production 70 Times / Min
Product Details:
Full Automatic 2.0m Expanded Metal Machine / Professional Oil Metal Machine
Description
1. Expanded Metal Machine has attained advanced technology scientific maturity and practical usage that make Expanded Metal Mesh,Aluminium Expanded Metal Mesh ect.
2. Our JQ25 series expanded metal machine is a revolutionary products.
Application
The light expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.
Steel Screen Machine
| Model Specifications | Punching Shear Material Thickness | Maximum Punching Shear Thickness | Slider Reciprocating Times | Feeding Distance | Punching Shear Mesh Length Distance | Motor Power | Total Weight | Overall Dimensions |
| JQ25-6.3 | <=1.0mm | 500mm | 180/min | 0-1.15mm | <=20mm | 2.2KW | 0.95T | 950X570X1780 |
| JQ25-16 | <=1.0mm | 1000mm | 150/min | 0-1.2mm | <=25mm | 3KW | 2T | 1800X1320X1550 |
| JQ25-25 | <=1.5mm | 1200mm | 150/min | 0-1.2mm | <=30mm | 4KW | 3T | 1940X1600X2010 |
| JQ25-63A | <=2.5mm | 2000mm | 70/min | 0-4mm | <=100mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-63 B | <=3mm | 2000mm | 45/min | 0-4mm | <=200mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-100 | <=4mm | 2000mm | 60/min | 0-4 | <=150mm | 15KW | 12T | 3600 x 2500 x 3000 |
| JQ25-160A | <=6mm | 2000mm | 20/min | 0-7mm | <=200mm | 22KW | 18T | 5500X1750X3300 |
| JQ25-160B | <=6mm | 2500mm | 20/min | 0-4mm | <=200mm | 22KW | 20T | 5500X1750X3300 |

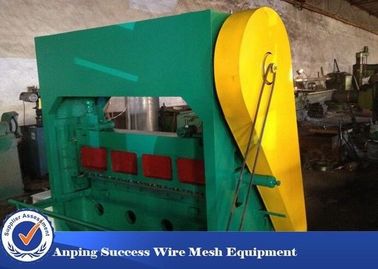

Decorative Mesh PLC Control Sheet Metal Perforating Machine For Produce Varied Patterns
Product Details:
Decorative Mesh PLC Control Expanded Metal Machine / 2.5m Stainless Machine
Description
1. The machine we design and produce including standard type, high speed type and heavy type.
2. We have various different type of expanded metal machine, the specification from 6.3tons to 160 tons.The mesh punching thickness from 0.1 to 10mm, The mesh width from 600mm to 3200mm.
3. Our JQ25 series expanded metal machine is a revolutionary products.
Feature
Expanded Metal Machine has attained advanced technology scientific maturity and practical usage that make Expanded Metal Mesh,Aluminium Expanded Metal Mesh ect.
Application
The light expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.
Steel Screen Machine
| Model Specifications | Punching Shear Material Thickness | Maximum Punching Shear Thickness | Slider Reciprocating Times | Feeding Distance | Punching Shear Mesh Length Distance | Motor Power | Total Weight | Overall Dimensions |
| JQ25-6.3 | <=1.0mm | 500mm | 180/min | 0-1.15mm | <=20mm | 2.2KW | 0.95T | 950X570X1780 |
| JQ25-16 | <=1.0mm | 1000mm | 150/min | 0-1.2mm | <=25mm | 3KW | 2T | 1800X1320X1550 |
| JQ25-25 | <=1.5mm | 1200mm | 150/min | 0-1.2mm | <=30mm | 4KW | 3T | 1940X1600X2010 |
| JQ25-63A | <=2.5mm | 2000mm | 70/min | 0-4mm | <=100mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-63 B | <=3mm | 2000mm | 45/min | 0-4mm | <=200mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-100 | <=4mm | 2000mm | 60/min | 0-4 | <=150mm | 15KW | 12T | 3600 x 2500 x 3000 |
| JQ25-160A | <=6mm | 2000mm | 20/min | 0-7mm | <=200mm | 22KW | 18T | 5500X1750X3300 |
| JQ25-160B | <=6mm | 2500mm | 20/min | 0-4mm | <=200mm | 22KW | 20T | 5500X1750X3300 |
| Color: | Green | Power: | 30KW |
|---|---|---|---|
| After-sales Service: | Engineers Available To Service Overseas | Width: | 2500mm |
| Speed: | 55 Times/min | Thickness: | 0.5-6mm |
| Weight: | 22T |

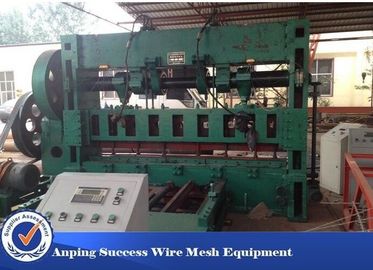

Green Aluminum Sheet Metal Perforating Machine Hydraulic Cylinder 2000mm Width
Product Details:
Green Aluminum Sheet Mesh Expanded Metal Machine / JQ25-63 Expanding Machinery
Description
1. JQ25 series expanded metal machine is a revolutionary products
2. It adopts automatic lubricating system,automatic feeding material by step motor ,the electric system is PLC control.it running stable, operation easy.
Steel Screen Machine
| Model Specifications | Punching Shear Material Thickness | Maximum Punching Shear Thickness | Slider Reciprocating Times | Feeding Distance | Punching Shear Mesh Length Distance | Motor Power | Total Weight | Overall Dimensions |
| JQ25-6.3 | <=1.0mm | 500mm | 180/min | 0-1.15mm | <=20mm | 2.2KW | 0.95T | 950X570X1780 |
| JQ25-16 | <=1.0mm | 1000mm | 150/min | 0-1.2mm | <=25mm | 3KW | 2T | 1800X1320X1550 |
| JQ25-25 | <=1.5mm | 1200mm | 150/min | 0-1.2mm | <=30mm | 4KW | 3T | 1940X1600X2010 |
| JQ25-63A | <=2.5mm | 2000mm | 70/min | 0-4mm | <=100mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-63 B | <=3mm | 2000mm | 45/min | 0-4mm | <=200mm | 11KW | 10T | 2400X3500X2300 |
| JQ25-100 | <=4mm | 2000mm | 60/min | 0-4 | <=150mm | 15KW | 12T | 3600 x 2500 x 3000 |
| JQ25-160A | <=6mm | 2000mm | 20/min | 0-7mm | <=200mm | 22KW | 18T | 5500X1750X3300 |
| JQ25-160B | <=6mm | 2500mm | 20/min | 0-4mm | <=200mm | 22KW | 20T | 5500X1750X3300 |
Plain Net Machine
| Model | ZPJ-05Type | ZPJ-10Type | ZPJ-125Type | ZPJ-15Type | Note: Plain net thickness is less than or equal to 2.5mm |
| Plain Net Width | 500mm | 1000mm | 1250mm | 1500mm |
