Chicken Pigeonhole Row Welder / Welding Mesh Machine / 1200MM Welding Width
Describe
This machine adopts electrical synchronous control technique ,both welding time and separate welding are digital integrated circuits,high control precision,stable performance,solid joints,no burn marks.Weft blanking mechanism steppping motor control,automatic reclaimer from the hopper, blanking even accurate,mesh neat edge,no cutting edge.pull the network using anelastic rod and grid positioning device,easy to make the mesh fine -tuning,high precision grid size,welding aperture can be adjusted within a predetermined range.
Aircraft use
1. construction mesh (estazolam board network,geothermal network,seedbed net,flower room with a net ).
2. with net culture(cages,rabbit cage,fox cage)and the like.
welding wire diameter | 2.5-4.0mm | rated voltage | 380v |
welding aperture | 50*50-200*200mm | rated power | custom |
warps spacing | 100-300mm | total dimensions | 1.8*2.5*1.8m |
welding width | 1200mm | weight | 3.2T |
welding speed | 60time/min | ||
number of solder joints | custom |

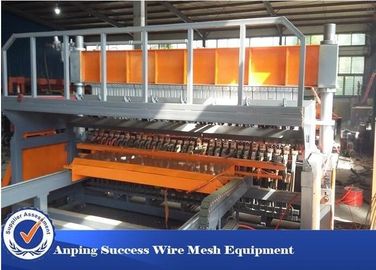

Pneumatic Reinforcing Wire Mesh Making Machine Width 2500mm
The working process
1. Feeding: Cross wire & Line wire are both pre-cut wires. Cross wires are feeded to the mould manually then the wire falling autoamticlly, while line wires are automatically feeded by the servo motor.
2.Welding: The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; welding power is pneumatic, and welding pressure can be easily and intuitively adjusted.
3.Welding finish: The servo motor controls an automatic mesh drawing process until the whole mesh is welded, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
The machine is introduced
Pneumatic steel mesh welding machine type used in the manufacture of pre-straightened and cut,simple and compact welding production line for a mass production of small and medium-sized steel mesh,can be welded ,and other welded mesh fence. Native multi-stage electric resistance welding principle,the vertical bars,horizontal bars according to the set requirements,welded into a solid mesh.Suitable can be cold -rolled steel ribbed steel,hot -rolled or cold -rolled smooth steel bars.
Accessories
1. air tank
2. air compressor
3. wire straighting and cutting machine
4. bobbin
Technical parameters
Model: | JG-05 | Net Width: | 2500mm |
---|---|---|---|
Working Speed: | 60 | Rated Power: | 2000KVA |
Host Size: | 4*3.4*2.6m | Weight: | 8t |
Wire diameter | 5mm-12mm | Warp feeding | Pre-cut |
Weft distance | Min. 50mm | Weft feeding | Pre-cut |
Warp distance | 100mm-300mm | Power supply | AC380V-440V |
Warp quantity | 26 | Welding width | 2500mm |
Mesh length | 12m | Welding speed | 45 times/min |
Dimensions | 10*3.4*1.8(m) | Welding capacity | 12mm+12mm |

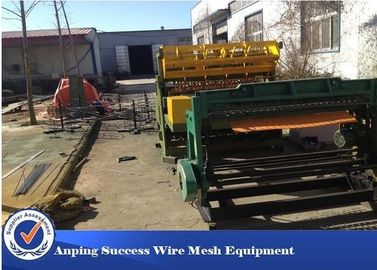

Fence Machine / Welding Fence / Wire Mesh Making Machine
The machine introduced
The machine adopts synchronous control technique,both welding time aned separate welding are digital PLC programming system,of which the input panel for the touch screen,the operation more intellingent ,rationaliza-tion,and has a compression, sub-sub -welding characteristics.The biggest advantage of the machine is:size between the weft and woof of a hole may appear in the same medium.
Mechanical uses
Fence (road,rail)fence ,with a net floor pouring top.
The machine parameter
Welding wire diameter | 3mm-6mm | Rated voltage | 380V |
Welding aperture | 50*50-300*300mm | Rated voltage | 750KVA |
Welding width | 2500mm | Dimensions | 6*3.2*1.8m |
The number of warp | 48 | Machine weight | 4.2t |
Welding speed(beats/min) | 60 |

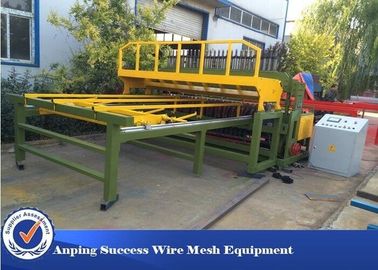

Automatic reinforcing mesh welding machine/wire mesh welding machine /by touch input
The mechanical reinforcing mesh production line is mainly used for producing construction reinforcing meshes.
Feeding mode: warps and wefts required by the equipment are pre-sheared by an automatic straightening cutting machine, the warps are placed on a corresponding wire penetrating mold by workers, and the wefts are placed into a special accommodation groove and are controlled for automatic blanking through a servo motor.
Welding: The main machine starts welding: the machine adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; a welding process is finished on the basis of spring pressurization.
Welding finish: The servo motor controls an automatic mesh drawing process until the whole mesh is welded, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
Technical parameters
Wire diameter | 5mm-12mm | Warp feeding | Pre-shearing |
Weft distance | Min 50mm | Weft feeding | Pre-shearing |
Warp distance | 100mm-300mm | Power supply | AC380V-440V |
Warp quantity | 26 | Welding width | 2500mm |
Mesh length | 12m | Welding speed | 45 times∕min |
Dimensions | 10*3.4*1.6(m) | Welding capacity | 12mm+12mm |
The above parameters can be customized according to customer requirements.

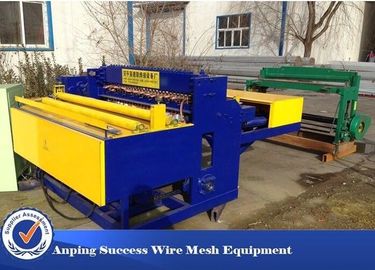

Wire Mesh Welded Machine / Welding Width 2500mm / Power 380/220V 50-60HZ
Wire Mesh Welded Machine
1. YW-DHW6,7,2.5m series of wire mesh welding machine,shuttle sending weft wire type and is suitable for
Wire Mesh Welded Machine
2. This machine uses hydraulic bucking to roll up.Lower noise,with uniform mesh,used for high way guardrail.
3. it can also be used for welding the ordinary mesh when it is not bended.
Width(mm) | 6×1”type | 1828-1524 |
7×1”type | 2133.6-1828.5 | |
2.5m×1”type | 2500-1828.8 | |
Size of mesh(mm) | 1”-4” | |
Bending of wire | 2” | |
Diameter of wire (mm) | 1.5-2.75 | |
Bending diameter | 1.5-2.6 | |
Welding speed | 65-75 | |
Hydraulic speed | 55-60 | |
Hydraulic pressure | 5-7mpa | |
Power | 380/220V 50-60HZ | |
Roll length(mm) | 90m |
