silt fence machine

Hinge Joint Knot Weaving Silt Fence Machine 45 Row / Min Efficiency

  • Hinge Joint Knot Weaving Silt Fence Machine 45 Row / Min Efficiency¬†
Product Details:

Hinge Joint Knot Weaving Field Fence Machine / Grassland Fence Machine





Specifications



hinge joint knot weaving field fence machine
1, wire diameter:2.5-6mm
2, width:2400mm
3.mesh:50*50-300*300



We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.

Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".



Automatic Grassland fence machine
1. Quality:solid and durable
2. Guarantee time: one year
3. complete after-sale service
4. lowest price!!

Type 1422mm 1880mm 2000mm 2400mm
motor 5.5kw 7.5kw 7.5kw 11kw
Dimension 2.8*3.2*2.4(m) 3.3*3.2*2.4(m) 3.4*3.2*2.4(m) 3.9*3.4*2.4(m)
Efficiency 45row/min ≤45row/min ≤45row/min ≤45row/min
Twine diameter 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm)
Side wire diameter 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm)
Voltage 380v 380v 380v 380v
Weight 3.5T 3.8T 4.0T 4.5T
Wrap number 11 13 18 23
Minimum weft opening number 2 4 4 6
Weft number 10 12 17 22
Productivity 21600time/day (150m/h)

Customized Color Silt Fence Machine Numerical Control Machine Full Automatic

  • Customized Color Silt Fence Machine Numerical Control Machine Full Automatic
Product Details:

Full Automatic Grassland Fence Machine / Hinge Joint Field Fence Machine





Description



1. The machine adopts CNC box automatic control, has coordinated parts, steady motion and flexible and reliable operation, and is the sole equipment for producing automatic surround grassland fence in China. 2. It plays key roles in achieving rotational grazing and protecting meadow, and also can be used for isolation and protection of rare flower, forest and plantation.



Feature



Numerical control machine uses automatic control box, coordination of the various components, smooth movement, flexible and reliable operation is currently the only production automation I wraparound grassland fencing network equipment.

Main technical parameters as follows


Side wire 2.0-3.4mm(adjustable)
inner wire 1.8-2.5mm(adjustable)
Net width 2 m
Mesh range Adjust according to customer demands
Overall diamensions 2200x2000x2200mm
Weaving speed 0-30times/minute
Total weight 5T
Power 4.0KW

High Speed Cattle Fence Machine , Silt Fence Machine Small Size

  • High Speed Cattle Fence Machine , Silt Fence Machine Small Size
Product Details:

High Speed Automatic Forest Fence Weaving Machine For Grassland Fence





Description



1. Grassland fence making machine, also known as the bullpen Machine is prepared surround-type fence, which is not easy to pull, flexible, sub-net rust.

2. Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.



Feature

Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.

Main technical parameters as follows


Side wire 2.0-3.4mm(adjustable)
inner wire 1.8-2.5mm(adjustable)
Net width 2 m
Mesh range Adjust according to customer demands
Overall diamensions 2200x2000x2200mm
Weaving speed 0-30times/minute
Total weight 5T
Power 4.0KW

High Stability Silt Fence Machine Bullpen Machine For Deer / Sheep / Cattle

  • High Stability Silt Fence Machine Bullpen Machine For Deer / Sheep / Cattle
Product Details:

Field Fence Machine Manufacturer / Width 1422mm / Motor 5.5kw





Quick Details



Place of Origin: Hebei, China (Mainland)

Brand Name: JG

Model Number: JGDHW-004

After-sales Service Provided: Engineers available to service machinery overseas

Brand: JG

Delivery: 30days

Width: 1422mm

Capacity: 300-480kw

Power: 380/220V

Packaging & Delivery

Packaging Details: with container 20ft FCL
Delivery Detail: 20days



Specifications



Grassland fence mesh welding machine
1, wire diameter:2.5-6mm
2, width:1422mm
3, mesh opening: 50x50-300x300



Grassland fence mesh welding machine

We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.



1, Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".

Grassland fence mesh welding machine
1, wire diameter:2.5-6mm
2, width:2600mm
3, mesh opening: 50x50-300x300

Type JG-A JG-B JG-C JG-D
Width 1422mm 1880mm 2000mm 2400mm
motor 5.5kw 7.5kw 7.5kw 11kw
Dimension 2.8*3.2*2.4(m) 3.3*3.2*2.4(m) 3.4*3.2*2.4(m) 3.9*3.4*2.4(m)
Efficiency ≤45rows/min ≤45row/smin ≤45rows/min ≤45rows/min
Twine diameter 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm)
Side wire diameter 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm)
Voltage 3-phase380v50HZ 3-phase380v50HZ 3-Phase380v50HZ 3-Phase380v50HZ
Weight 3.0T 3.5T 4.0T 4.5T
Maximum line wire number 11 13 18 23
Minimum line wire opening 75mm 75mm 75mm 75mm
The weft opening

100mm,200mm,300

mm 0r 150mm,300

mm

100mm,200mm,300

mm 0r 150mm,300

mm



100mm,200mm,300



mm Or 150mm,300



mm





100mm,200mm,300



mm 0r 150mm,300



mm







380V / 50HZ Silt Fence Machine For Deer / Sheep Easy Maintenance

  • 380V / 50HZ Silt Fence Machine For Deer / Sheep Easy Maintenance
Product Details:

Forest Fence Weaving Machine / Grassland Farm Machine For Deer / Sheep





Description



1, Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.
2. Steel wire, galvanized surround surface, other parts are rust and corrosion measures taken, can adapt to harsh working conditions, life expectancy up to 20 years.



Feature



Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.

Main technical parameters as follows

Side wire 2.0-3.4mm(adjustable)
inner wire 1.8-2.5mm(adjustable)
Net width 2 m
Mesh range Adjust according to customer demands
Overall diamensions 2200x2000x2200mm
Weaving speed 0-30times/minute
Total weight 5T
Power 4.0KW

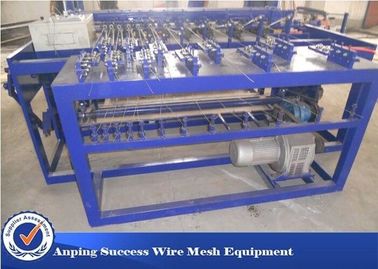

Grassland Farm Fencing Equipment / Silt Fence Machine Width 1880mm

  • Grassland Farm Fencing Equipment / Silt Fence Machine Width 1880mm
Product Details:

Glassland Fence Machine / Fence Mesh Welding Machine / Width 1880mm



garden fence machine
1, wire diameter:2.5-6mm
2, width:1880mm
3, mesh opening: 50x50-300x300



We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.
1, Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".
1, wire diameter:2.5-6mm
2, width:1880mm
3, mesh opening: 50x50-300x300

Type CY-A CY-B CY-C CY-D
Width 1422mm 1880mm 2000mm 2400mm
motor 5.5kw 7.5kw 7.5kw 11kw
Dimension 2.8*3.2*2.4(m) 3.3*3.2*2.4(m) 3.4*3.2*2.4(m) 3.9*3.4*2.4(m)
Efficiency ≤45rows/min ≤45row/smin ≤45rows/min ≤45rows/min
Twine diameter 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm)
Side wire diameter 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm)
Voltage 3-phase380v50HZ 3-phase380v50HZ 3-Phase380v50HZ 3-Phase380v50HZ
Weight 3.0T 3.5T 4.0T 4.5T
Maximum line wire number 11 13 18 23
Minimum line wire opening 75mm 75mm 75mm 75mm
The weft opening 100mm,200mm,300
mm 0r 150mm,300
mm
100mm,200mm,300
mm 0r 150mm,300
mm

100mm,200mm,300

mm Or 150mm,300

mm

100mm,200mm,300

mm 0r 150mm,300

mm



Automatic Control Field Fence Machine , Silt Fence Machine Low Noise 5.5KW

  • Automatic Control Field Fence Machine , Silt Fence Machine Low Noise 5.5KW
Product Details:

Hinge Joint Grassland Fence Making Machine Silt Fence Machine Folding Machine





Description



1.The machine adopts CNC box automatic control, has coordinated parts, steady motion and flexible and reliable operation, and is the sole equipment for producing automatic surround grassland fence in China. 2. It plays key roles in achieving rotational grazing and protecting meadow, and also can be used for isolation and protection of rare flower, forest and plantation.



Application



Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.



Main technical parameters as follows

Side wire 2.0-3.4mm(adjustable)
inner wire 1.8-2.5mm(adjustable)
Net width 2 m
Mesh range Adjust according to customer demands
Overall diamensions 2200x2000x2200mm
Weaving speed 0-30times/minute
Total weight 5T
Power 4.0KW

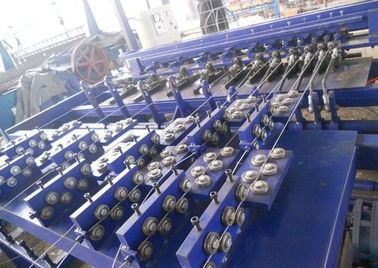

Hinge Joint Galvanized Silt Fence Machine 1.8 - 2.5mm Wire Diameter

  • Hinge Joint Galvanized Silt Fence Machine 1.8 - 2.5mm Wire Diameter
  • Hinge Joint Galvanized Silt Fence Machine 1.8 - 2.5mm Wire Diameter
Product Details:

Grassland fence machine / Hinge Joint Galvanized Wire Mesh Weaving Machine





Description



The machine adopts CNC box automatic control, has coordinated parts, steady motion and flexible and reliable operation, and is the sole equipment for producing automatic surround grassland fence in China. The product is featured by novel, firm and accurate structure, flat wire side, uniform mesh, strong integrity, large toughness, no folding, skid resistance and crush resistance, and widely used for zoo fence, construction site fence, captive poultry, slope greening and landscaping mesh, wild zoo, grassland, pasture and other grazing places, especially pasture fence engineering. It plays key roles in achieving rotational grazing and protecting meadow, and also can be used for isolation and protection of rare flower, forest and plantation.







Main technical parameters as follows


Side wire 2.0-3.4mm(adjustable)
inner wire 1.8-2.5mm(adjustable)
Net width 2 m
Mesh range Adjust according to customer demands
Overall diamensions 2200x2000x2200mm
Weaving speed 0-30times/minute
Total weight 5T
Power 4.0KW
