chicken mesh making machine
Animal Wire Cage Welding Machine , Chicken Mesh Making Machine 380V - 420V
Product Details:
Animal Cage Wire Mesh Welding Machine / Rated Voltage 380V-420V / Wire Diameter 1.8-3.2mm
Feeding mode
Wefts are cut off in a straightening mode, warps are coil wires.
The weft blanking mechanism takes materials from a hopper and is uniform and accurate in blanking, meshes do not need welding in a trimmed mode due to tidy edges (full-automatic welding); a power electronic synchronous control technology is adopted, both welding time and branch control welding are formed by a digital integrated circuit, the control accuracy is high, welding sports are firm, and burn marks cannot be formed.
Meshes are drawn by an elastic pull rod and a grid positioning device, so that grids are easy to adjust slightly and high in dimensional accuracy, and the apertures of welded meshes can be adjusted at random in a certain range.
Application
cultivation meshes and poultry meshes
Technical parameters
| Wire diameter | 1.8-3.2mm | Rated voltage | 380V-420V(customized) |
| Welding aperture | 25*25-200*200mm | Rated power | Customized |
| Welding width | 1200mm | Dimensions | 1.8x2.5x1.8m |
| Warp quantity | 25 | Machine weight | 3.2t |
| Welding speed | 80times/min | Welding length | Customized |
The above parameters can be customized according to customer requirements.
Accessories
1. wire straightening and cutting machine
2. bobbin

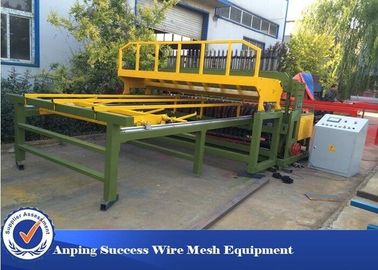

25times / Min Chicken Mesh Making Machine For Producing Construction Reinforcing Meshes
Product Details:
Automatic reinforcing mesh welding machine/wire mesh welding machine /by touch input
The mechanical reinforcing mesh production line is mainly used for producing construction reinforcing meshes.
Feeding mode: warps and wefts required by the equipment are pre-sheared by an automatic straightening cutting machine, the warps are placed on a corresponding wire penetrating mold by workers, and the wefts are placed into a special accommodation groove and are controlled for automatic blanking through a servo motor.
Welding: The main machine starts welding: the machine adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; a welding process is finished on the basis of spring pressurization.
Welding finish: The servo motor controls an automatic mesh drawing process until the whole mesh is welded, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
Technical parameters
| Wire diameter | 5mm-12mm | Warp feeding | Pre-shearing |
| Weft distance | Min 50mm | Weft feeding | Pre-shearing |
| Warp distance | 100mm-300mm | Power supply | AC380V-440V |
| Warp quantity | 26 | Welding width | 2500mm |
| Mesh length | 12m | Welding speed | 45 times∕min |
| Dimensions | 10*3.4*1.6(m) | Welding capacity | 12mm+12mm |
The above parameters can be customized according to customer requirements.
60 Times / Min Chicken Mesh Making Machine For Poultry Meshes Stable Performance
Product Details:
Three Wire Welding Clamp Welding Fence / Mesh Welding Machine / PLC Programming System
The machine is introduced
The machine adopts synchronous control technique,both welding time and separate welding are digital PLC programming system ,of which the input panel for the touch screen,the operation more intelligent,rationalization,and has acompression,sub-sub-welding characteristics.The biggest advantage of this machine is:different sizes of holes between latitude and latitude can appear in the same piece online.
The machine parameter
| welding wire diameter | 4-8mm | rated voltage | 380v |
| welding aperture | 50*50-300*300 | rated power | 750KVA |
| welding width | 2500mm | total dimensions | 6*3.2*1.8m |
| welding speed | 60times/min | weight | 4.2t |
| number of solder joints | 48 |
Double Line Wire Netting Machine , Chicken Mesh Making Machine Multi Purpose
Product Details:
Automatic double line wire mesh welding machine/welding width 2500mm/ PLC
The double-line-wire automatic wire mesh welding machine is mainly used to weld shaped wire mesh panels.
Feeding mode: the wefts are straightened, cut and then bent on a bending machine to finish an ideal radian; the wefts are straightened, cut and sequentially placed at corresponding positions of a wire placement mold frame.
Welding: The servo motor controls an automatic feeding process to finish welding, and the grids are uniform; pneumatic pressurization is adopted, and welding spots are firm; mesh openings, welding pressure and other welding parameters can be adjusted only by direct input on a touch screen.
Welding finish: meshes are automatically drawn by a stepper motor.
Technical parameters
| Wire diameter | 4-8mm | Rated voltage | AC380 |
| Weft distance | min50mm | Warp mode | Pre-shearing and pre-bending |
| Warp distance | 100-300mm | Weft mode | Pre-shearing |
| Welding width | 2000mm | Welding sport quantity | 21 |
| Welding speed | 40times/min | Dimensions | 12.5*2.5*1.9m |
The above parameters can be customized according to customer requirements.
Accessories
1. wire straighting and cutting
PLC Centralized Control Chicken Mesh Making Machine For Industrial Touch Input
Product Details:
Full-automatic Welded Wire Mesh Machine / PLC Centralized Control / By Touch Input
Description
The machine is provided with a thick-steel-plate frame, a vertical gearbox and an integrated clutching weft feeding mechanism, and straightens wires in an enclosed mode. Electromagnetic stepless speed regulation is adopted, and grids are firm and uniform; wires are firmly welded in a three-phase power electronic control mode, and the machine can be finely adjusted and controlled.
| Model | Welding width | Apturere | Wire diameter | Speed (meshes/min) | Coiled mesh length | Dimensions(m) |
| DCD-1 | 2′-4′ | 1/2-1 | 0.65-2.0 | ≧50 (Radial direction) |
120-400m | 1.5*2.3*1.6 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-2 | 2’-5’ | 1/2-1 | 0.65-2.0 | ≧50 (Radial direction) |
120-350m | 1.6*2.5*1.6 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-3 | 4’-6’ | 3/8-3/4 | 0.65-1.5 | ≧50 (Radial direction) |
120-300m | 1.7*3.0*1.8 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-4 | 4’-7’ | 1/2-1 | 0.65-2.0 | ≧50 (Radial direction) |
120-300m | 1.8*3.5*1.9 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 |
The above parameters can be customized according to customer requirements.
