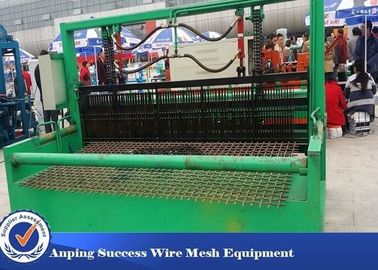

Full-Automatic Crimped Wire Mesh Machine / Professional Screen Mesh Machine
Weaving Breadth(mm) | Overall Dimensions(mm) | Overall dimensions(KW) | Matched power(kg) |
1000mm | 2500mmx2000mmx1500mm | 0.75 | 800 |
1200mm | 2800mmx2000mmx1500mm | 1.1 | 1000 |
1300mm | 3200mmx2000mmx1500mm | 1.1 | 1100 |
1500mm | 3500mmx2500mmx1700mm | 1.5 | 1250 |
1800mm | 4000mmx2500mmx1700mm | 1.5 | 1500 |
2000mm | 4200mmx3000mmx1800mm | 2.2 | 1800 |
2300mm | 4500mmx3000mmx1800mm | 2.2 | 2000 |
Multifunction Squar Crimped Wire Mesh Weaving Machine For Automatic
1. Our machines could produce wire diameter range from 0.4 to 12 mm and width 1000 – 2500 mm 3 series,10kinds specifications crimped wire mesh machine .
2. Our machines could produce every kind of high quality common curl type, plain crimped, intermediate crimped, lock crimped, flat top crimped.
3. This series of machine widely used for every technical-net, warehouse fence mesh, vibrating screen, wall net building etc.
Weaving Breadth(mm) | Overall Dimensions(mm) | Overall dimensions(KW) | Matched power(kg) |
1000mm | 2500mmx2000mmx1500mm | 0.75 | 800 |
1200mm | 2800mmx2000mmx1500mm | 1.1 | 1000 |
1300mm | 3200mmx2000mmx1500mm | 1.1 | 1100 |
1500mm | 3500mmx2500mmx1700mm | 1.5 | 1250 |
1800mm | 4000mmx2500mmx1700mm | 1.5 | 1500 |
2000mm | 4200mmx3000mmx1800mm | 2.2 | 1800 |
2300mm | 4500mmx3000mmx1800mm | 2.2 | 2000 |
Simple structure and easy operation, high working speed and low noise.
1-2.3 m Multifunctional Crimped Wire Mesh Machine / Mesh 15x15
Multifunctional Crimped Wire Mesh Weaving Machine
Multifunctional crimped wire mesh weaving machine can make the breadth of the netting is 0.9-2.5m and the diameter of the wire is 0.4-2.0mm the size of the mesh is 1.5x1.5-15x15mm the weaving speed can reach 30-50 times shuttle/minute.
MAIN PARAMETER
Weaving Width(mm) | Overal Diamension(mm) | Motor Power(KW) | Machine Weight(KG) |
1000 | 2500x2000x1500 | 0.75 | 800 |
1200 | 2800x2000x1500 | 1.1 | 1000 |
1300 | 3200x2000x1500 | 1.1 | 1100 |
1500 | 3500x2500x1700 | 1.5 | 1250 |
1800 | 4000x3000x1700 | 1.5 | 1500 |
2000 | 4200x3000x1800 | 2.2 | 1800 |
2300 | 4500x3000x1800 | 2.2 | 2000 |
Hot Dip Galvanized Crimped Wire Mesh Machine / Heavy-Duty Machine 2-6mm

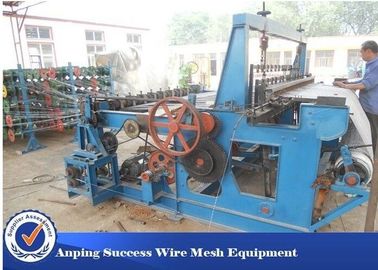

Semi Automatic Crimped Wire Mesh Machine
This machine’s structur compact ,easy to operate,can be woven mesh 2.5-10mm,wire diameter 2mm-6m,weaving width of 1-4meters, This machine also known as Mine screen loom.
1. Crimped Wire Mesh is extensively used in mining for classification sieving (commonly known as the Mine Screen net), the aircraft also known as Mine screen loom.
2. Placing wefts manually.
3. Wefts and warp rolled in advance.
MAIN PARAMETER
Weaving Width(mm) | Overal Diamension(mm) | Motor Power(KW) | Machine Weight(KG) |
1000 | 2500x2000x1500 | 0.75 | 750 |
1200 | 2600x2500x1500 | 1.1 | 800 |
1300 | 2800x2500x1500 | 1.1 | 1000 |
1500 | 3500x3000x1700 | 1.5 | 1200 |
1800 | 4000x3000x1700 | 2.2 | 1400 |
2000 | 3300x3000x1800 | 3.0 | 1600 |
2300 | 3500x3000x1800 | 3.0 | 1800 |

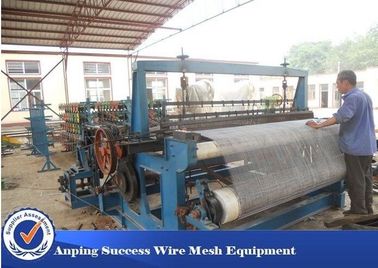

Automatic Crimped Wire Mesh Weaving Machine / Vibration Screen Weaving Machine
1. The machine is designed and produced by our factory to adapt to market demand, adopts shuttleless shaftment for straight weft insertion and wire prebending molding, synchronously finishes weft embossing and weaving, and is featured by simple operation, steady operation and high production efficiency.
2. It is suitable for weaving meshes with small and medium wire number and unusual wire meshes, and can weave specifications of crimped meshes with width of 1m-2.3m, knitting tightness of 2-20 meshes and wire diameter of 0.4mm-1.6mm.
3. The made products are widely used for screening filtration in coal mine, petroleum, chemical industry and other fields.
Weaving Breadth(mm) | Overall Dimensions(mm) | Overall dimensions(KW) | Matched power(kg) |
1000mm | 2500mmx2000mmx1500mm | 0.75 | 800 |
1200mm | 2800mmx2000mmx1500mm | 1.1 | 1000 |
1300mm | 3200mmx2000mmx1500mm | 1.1 | 1100 |
1500mm | 3500mmx2500mmx1700mm | 1.5 | 1250 |
1800mm | 4000mmx2500mmx1700mm | 1.5 | 1500 |
2000mm | 4200mmx3000mmx1800mm | 2.2 | 1800 |
2300mm | 4500mmx3000mmx1800mm | 2.2 | 2000 |
