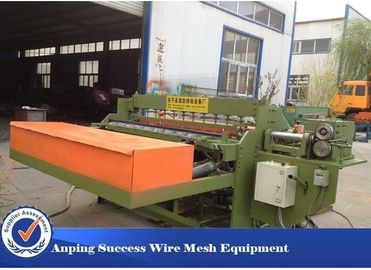

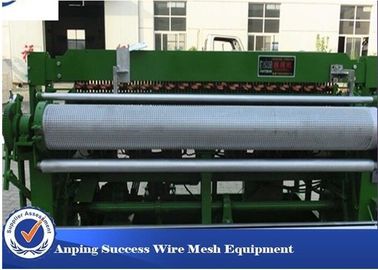

Welded Wire Machine / Welded Mesh Machine / Wire Mesh Machine / Lower Noise
We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.
Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".
Size of mesh (mm) | 12.7-101.6 (1/2"-4") |
Width (mm) | 914.4-1219.2 ( 12"-48") |
Diameter of wire (mm) | Dia.0.63-Dia.2 ( BWG23-BWG14) |
Max. rolled net size (mm) | 120 (400') |
Welding speed ( mesh/minute) | 65 ( radia) |
Power | 380/220V 50-60HZ 50KWAx4 |
Outside size(mm) | 2600x1700x1350 |

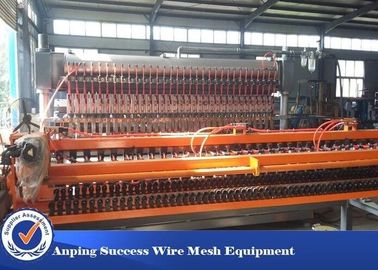

Pneumatic Reinforcing Mesh Welding Machine / Wire Mesh Welding / 2050MM Width
The working process
1. Feeding: Cross wire & Line wire are both pre-cut wires. Cross wires are feeded to the mould manually then the wire falling autoamticlly, while line wires are automatically feeded by the servo motor.
2. Welding: The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; welding power is pneumatic, and welding pressure can be easily and intuitively adjusted.
3. Welding finish: The servo motor controls an automatic mesh drawing process until the whole mesh is welded, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
Technical parameters
Wire diameter | 5mm-12mm | Warp feeding | Pre-cut |
Weft distance | Min. 50mm | Weft feeding | Pre-cut |
Warp distance | 100mm-300mm | Power supply | AC380V-440V |
Warp quantity | 26 | Welding width | 2500mm |
Mesh length | 12m | Welding speed | 45 times/min |
Dimensions | 10*3.4*1.8(m) | Welding capacity | 12mm+12mm |
.
Accessories
1. air tank
2. air compressor
3. wire straighting and cutting machine
4. bobbin

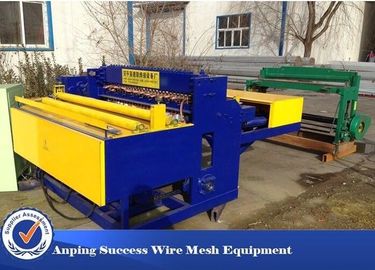

Wire Mesh Welded Machine / Welding Width 2500mm / Power 380/220V 50-60HZ
Wire Mesh Welded Machine
1. YW-DHW6,7,2.5m series of wire mesh welding machine,shuttle sending weft wire type and is suitable for
Wire Mesh Welded Machine
2. This machine uses hydraulic bucking to roll up.Lower noise,with uniform mesh,used for high way guardrail.
3. it can also be used for welding the ordinary mesh when it is not bended.
Width(mm) | 6×1”type | 1828-1524 |
7×1”type | 2133.6-1828.5 | |
2.5m×1”type | 2500-1828.8 | |
Size of mesh(mm) | 1”-4” | |
Bending of wire | 2” | |
Diameter of wire (mm) | 1.5-2.75 | |
Bending diameter | 1.5-2.6 | |
Welding speed | 65-75 | |
Hydraulic speed | 55-60 | |
Hydraulic pressure | 5-7mpa | |
Power | 380/220V 50-60HZ | |
Roll length(mm) | 90m |
Schoeller Board / PLC Touch Screen Control System / Low Production Costs
The machine uses a PLC touch screen control system,pneumatic or stepper motor as the driving force,through the automatic slant equipment ,cutting ,welding and rigorous targeting flat screen foam board, wire and flat xiecha net work to complete steel mesh hexene polystyrene sandwich board production,Production line automation,high production efficiency,low leakage welding ,large joint strength,unitormity,good flatness of products ,low production costs.
Rated electrical power | 75KVA |
Input voltage | 380V 50HZ |
Air source allocation | 3m3/min 0.6MPa |
Core panel thickness | 50mm-100mm |
Truss wire configuration | Double sided mesh,different densities of truss wires |
Length | 3000mm |
Width | 1220mm |
Welded wire diameter | 2.0-4.0mm cold drawing low -carbon steel wire |
Length | 13500mm |
Width | 1800mm |
Height | 1700mm |
Weight | 4000KG |

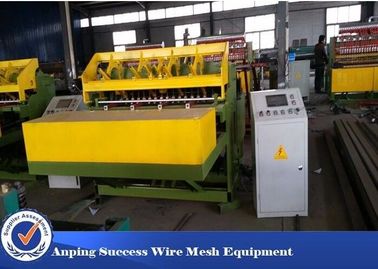

Animal Cage Wire Mesh Welding Machine / Rated Voltage 380V-420V / Wire Diameter 1.8-3.2mm
Feeding mode
Wefts are cut off in a straightening mode, warps are coil wires.
The weft blanking mechanism takes materials from a hopper and is uniform and accurate in blanking, meshes do not need welding in a trimmed mode due to tidy edges (full-automatic welding); a power electronic synchronous control technology is adopted, both welding time and branch control welding are formed by a digital integrated circuit, the control accuracy is high, welding sports are firm, and burn marks cannot be formed.
Meshes are drawn by an elastic pull rod and a grid positioning device, so that grids are easy to adjust slightly and high in dimensional accuracy, and the apertures of welded meshes can be adjusted at random in a certain range.
Application
cultivation meshes and poultry meshes
Technical parameters
Wire diameter | 1.8-3.2mm | Rated voltage | 380V-420V(customized) |
Welding aperture | 25*25-200*200mm | Rated power | Customized |
Welding width | 1200mm | Dimensions | 1.8x2.5x1.8m |
Warp quantity | 25 | Machine weight | 3.2t |
Welding speed | 80times/min | Welding length | Customized |
The above parameters can be customized according to customer requirements.
Accessories
1. wire straightening and cutting machine
2. bobbin
