diamond mesh fencing machine

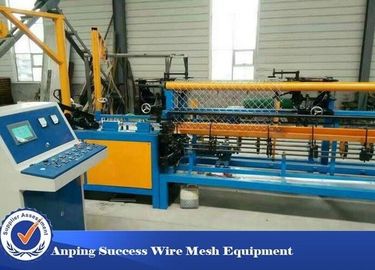

Automatic Diamond Mesh Fencing Machine High Production Efficiency
Product Details:
Automatic Chain Link Fence Machine Equipment / Netting Width 2000mm / 380v
Automatic Chain Link Fence Machine
1. One side or both sides of the end of net
2. hole is twisted
3. with burr in edge.
4. 1.8-4.0mm
5. The chain link is automatically wound to form rolls when the desired length is manufactured.
Feature
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
| Capacity | 80-120(m2/hour) |
| Wire Diameter | 2.0-4mmFeeding Wire Numbers: two |
| Size of Mesh | 30x30-100X100(mm) |
| Netting Width | 600-4000(mm) |
| Power and Rated voltage | 9.0KW 380V,50HZ |
| Dimensions | 3700*1430*1800mm 2100*1700*1250mm |

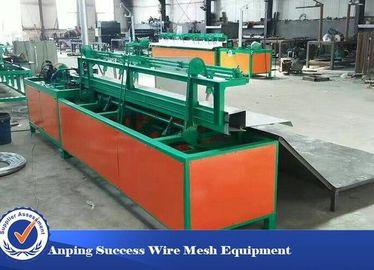

Semi Automatic Diamond Mesh Fencing Machine , Chain Link Weaving Machine Easy Operation
Product Details:
Semi-Automatic Diamond Mesh Machine / Netting Width 3000mm / 50mm*50mm
Introduce
Our semi-automatic diamond mesh machine has easy operation and technology, adopts manually sheared wire for overlock stitch, the woven mesh is smooth, and the complete machine has reliable performance and less failure and convenient maintenance, and is suitable for small enterprises.
Feature
Easy to operate, advanced technology, low price, good quality.
Specification
| Production Capacity | 20-25(m2/hour) |
| Wire Diameter | ∮1.8-∮4.0 |
| Mesh | 52X52mm |
| Breadth | 600-4000(mm) |
| Power | 3.0KW for One Machine 0.12KW for One Machine |
| Overall Dimensions(LXWXH) | L*W*H2400×4400×2500(mm) |
Professional Chain Link Fence Making Machine / Diamond Mesh Fencing Machine 2 - 4M
Product Details:
Full-automatic Chain Link Fence Machine / Dimaond Mesh Machine
Description
Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.The chain link is automatically wound to form rolls when the desired length is manufactured.
Our factory also can produce 3m full-automatic chain link fence machine with 2m breadth according to customer demands.
Features and Application:
Our full-automatic diamond mesh machine adopts German technology double silk weaving forming principle, so it has high production efficiency and the made mesh has reliable quality. The machine has reasonable design, and adopts microprocessor control and mechatronics to automatically finish spinning, shearing, wire rolling, overlock stitch and other processes. The made silk screen is used for expressway, ball court, park, warehouse, zoo fence, construction site fence, confined poultry, side slope greening, piping insulation, etc.
2m Wide Machine (Hydraulic)
| Production Capacity | 60-80(Square meter/hour) |
| Steel Wire Diameter | ∮2.5-∮4.0 Spinning Wire Number: Twin-wire (Description: Steel wire standard according with:GB3081-82 YB544-65 Steel Wire Material:B1F-B3F) |
| Mesh | 50x50-100x100(mm) |
| Breadth | 600-2000(mm) |
| Power | 3.0KW for One Machine 4.0KW for One Machine 0.12KW for One Machine |
| Overall Dimensions | LXWXH4200mm×4000mm×2500mm |
ZWJ-4000-S Full-automatic Chain Link Fence Machine
Parameters:
|
Production Capacity
|
80-120(m2/hour) |
| Steel Wire Diameter | ∮2.0-∮4.0 Spinning Wire Number: Twin-wire (Description: Steel wire standard according with:GB3081-82 YB544-65 Steel Wire Material:B1F-B3F) |
| Mesh | 30X30-108X108(mm) |
| Breadth | 600-4000(mm) |
| Power | 3.0KW1set 4.0KW1 set 0.12KW 1set |
| Overall Dimensions | L*W*H6500mm×4500mm×2500mm |
