chain link mesh machine

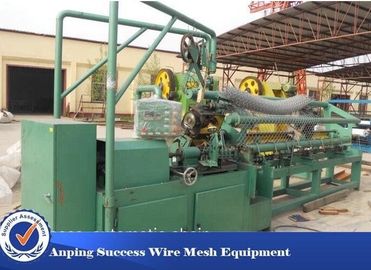

Customized Chain Link Mesh Machine / Chain Link Fence Equipment 9.5KW

  • Customized Chain Link Mesh Machine / Chain Link Fence Equipment 9.5KW
Product Details:

Automated Chain Link Fence Equipment Capacity 80-120 m2/hour




Automatic Chain Link Fence Machine



1. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes.

2. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.



Feature



The chain link is automatically wound to form rolls when the desired length is manufactured.

The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

One side or both sides of the end of net hole is twisted or with burr in edge.

Use compacting machine to make it into rolls.



Specification



Capacity 80-120(m2/hour)
Wire Diameter 2.0-4mmFeeding Wire Numbers: two
Size of Mesh 30x30-100X100(mm)
Netting Width 600-4000(mm)
Power and Rated voltage 9.0KW 380V,50HZ
Dimensions 3700*1430*1800mm 2100*1700*1250mm

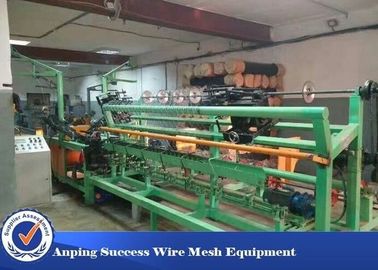

Multi Functional Chain Link Mesh Machine L*W*H 6500*4500*2500mm

  • Multi Functional Chain Link Mesh Machine L*W*H 6500*4500*2500mm
Product Details:

Chain Link Fence Machine / Automated Diamond Mesh Machine / Size Of Mesh 50mm*50mm





Product Description

Full Automatic Chain Link Fence Machine is a comprehensive model machine, that gather the machinery and pneumatic. And its structure is very simple, the weight is light, and take less place. And it adopt the new Frequency and electronically controlled clutch, can operated convenient and maintenance simply.



Characteristic and Uses

Our automatic diamond mesh machine applies technical double wire mesh forming principle of Germany that produce high quality mesh panel with good production efficiency.It uses reasonable design,microcomputer control and electromechnical intergration to complete working procedures of spinning ,shearing ,mesh winding and lock seaming automatically.The mesh produced is widly used as Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry.

Specification



Capacity 80-120(m2/hour)
Wire Diameter 1.8-4mmFeeding Wire Numbers: two
(Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F
Size of Mesh 40X40-108X108(mm)
Netting Width 600-4000(mm)
Power 3.0KW1set 4.0KW1 set 0.12KW 1set
mension L*W*H6500mm×4500mm×2500mm

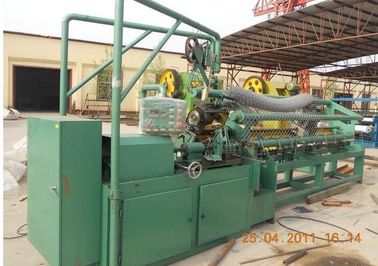

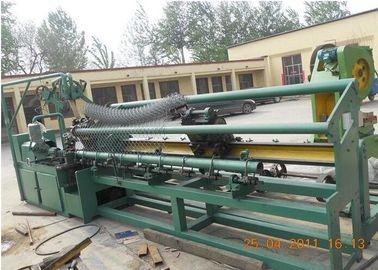

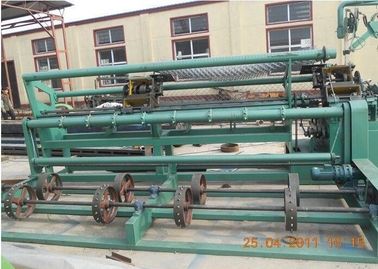

Professional Chain Link Mesh Machine / Diamond Mesh Fencing Machine 2 - 4M

  • Professional Chain Link Mesh Machine / Diamond Mesh Fencing Machine 2 - 4M
  • Professional Chain Link Mesh Machine / Diamond Mesh Fencing Machine 2 - 4M
  • Professional Chain Link Mesh Machine / Diamond Mesh Fencing Machine 2 - 4M
Product Details:

Full-automatic Chain Link Fence Machine / Dimaond Mesh Machine





Description



Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.The chain link is automatically wound to form rolls when the desired length is manufactured.



Our factory also can produce 3m full-automatic chain link fence machine with 2m breadth according to customer demands.



Features and Application:



Our full-automatic diamond mesh machine adopts German technology double silk weaving forming principle, so it has high production efficiency and the made mesh has reliable quality. The machine has reasonable design, and adopts microprocessor control and mechatronics to automatically finish spinning, shearing, wire rolling, overlock stitch and other processes. The made silk screen is used for expressway, ball court, park, warehouse, zoo fence, construction site fence, confined poultry, side slope greening, piping insulation, etc.

2m Wide Machine (Hydraulic)





Production Capacity 60-80(Square meter/hour)
Steel Wire Diameter ∮2.5-∮4.0 Spinning Wire Number: Twin-wire
(Description: Steel wire standard according with:GB3081-82
YB544-65 Steel Wire Material:B1F-B3F)
Mesh 50x50-100x100(mm)
Breadth 600-2000(mm)
Power 3.0KW for One Machine
4.0KW for One Machine
0.12KW for One Machine
Overall Dimensions LXWXH4200mm×4000mm×2500mm


ZWJ-4000-S Full-automatic Chain Link Fence Machine

Parameters:


Production Capacity



80-120(m2/hour)
Steel Wire Diameter ∮2.0-∮4.0 Spinning Wire Number: Twin-wire
(Description: Steel wire standard according with:GB3081-82
YB544-65 Steel Wire Material:B1F-B3F)
Mesh 30X30-108X108(mm)
Breadth 600-4000(mm)
Power 3.0KW1set 4.0KW1 set 0.12KW 1set
Overall Dimensions L*W*H6500mm×4500mm×2500mm
